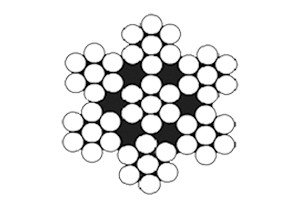

6×7-WSC
直徑 Diameter	直徑公差 Toleranceon Dia	最小破斷拉力 Minimum Breaking Load (KN)				參考重量 Approx Weight
直徑 Diameter	直徑公差 Toleranceon Dia	I	Ⅱ	Ⅲ	Ⅳ	參考重量 Approx Weight
mm	%D	I	Ⅱ	Ⅲ	Ⅳ	Kg/100m
2.50	+5-2	5.9	6.1	6.4	6.6	2.5
2.60		6.3	6.6	6.9	7.2	2.7
2.70		6.8	7.1	7.4	7.7	2.9
2.80		7.4	7.7	8.0	8.3	3.1
2.90		7.9	8.2	8.6	8.9	3.4
3.00		8.4	8.8	9.2	9.6	3.6
3.10		9.0	9.4	9.8	10.2	3.8
3.20		9.6	10.0	10.5	10.9	4.1
3.30		10.2	10.7	11.1	11.6	4.4
3.40		10.8	11.3	11.8	12.3	4.6
3.50		11.5	12.0	12.5	13.0	4.9
3.60		12.2	12.7	13.2	13.8	5.2
3.70		12.8	13.4	14.0	14.5	5.5
3.80		13.5	14.1	14.7	15.3	5.8
3.90		14.3	14.9	15.5	16.2	6.1
4.00		15.0	15.7	16.3	17.0	6.4
4.10		15.8	16.5	17.2	17.9	6.7
4.20		16.5	17.3	18.0	18.7	7.1
4.30		17.3	18.1	18.9	19.6	7.4
4.40		18.2	19.0	19.8	20.6	7.7
4.50		19.0	19.8	20.7	21.5	8.1
4.60		19.8	20.7	21.6	22.5	8.5
4.70		20.7	21.6	22.6	23.5	8.8
4.80		21.6	22.6	23.5	24.5	9.2
4.90		22.5	23.5	24.5	25.5	9.6
5.00		23.4	24.5	25.5	26.6	10.0
5.10		24.4	25.5	26.6	27.6	10.4
5.20		25.4	26.5	27.6	28.7	10.8
5.30		26.3	27.5	28.7	29.8	11.2
5.40		27.3	28.6	29.8	31.0	11.7
5.50		28.4	29.6	30.9	32.1	12.1
5.60		29.4	30.7	32.0	33.3	12.5
5.70		30.5	31.8	33.2	34.5	13.0
5.80		31.6	32.9	34.3	35.7	13.5
5.90		32.6	34.1	35.5	37.0	13.9

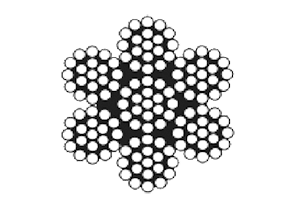

6*19-WSC
直徑 Diameter	直徑公差 Toleranceon Dia	最小破斷拉力 Minimum Breaking Load (KN)				參考重量 Approx Weight
直徑 Diameter	直徑公差 Toleranceon Dia	I	Ⅱ	Ⅲ	Ⅳ	參考重量 Approx Weight
mm	%D	I	Ⅱ	Ⅲ	Ⅳ	Kg/100m
6.0	+5-2	30.0	31.4	32.7	34.0	13.3
6.2		32.1	33.5	34.9	36.3	14.2
6.4		34.2	35.7	37.2	38.7	15.1
6.6		36.3	37.9	39.5	41.1	16.1
6.8		38.6	40.3	42.0	43.7	17.1
7.0		40.9	42.7	44.5	46.3	18.1
7.2		43.2	45.1	47.1	49.0	19.1
7.4		45.7	47.7	49.7	51.7	20.2
7.6		48.2	50.3	52.4	54.6	21.3
7.8		50.7	53.0	55.2	57.5	22.4
8.0		53.4	55.7	58.1	60.5	23.6
8.2		56.1	58.6	61.0	63.5	24.8
8.4		58.8	61.4	64.1	66.7	26.0
8.6		61.7	64.4	67.1	69.9	27.3
8.8		64.6	67.4	70.3	73.2	28.6
9.0		67.5	70.5	73.5	76.5	29.9
9.2		70.6	73.7	76.8	80.0	31.2
9.4		73.7	76.9	80.2	83.5	32.6
9.6		76.9	80.3	83.7	87.1	34.0
9.8		80.1	83.6	87.2	90.7	35.4
10.0	+4-2	83.4	87.1	90.8	94.5	36.9
10.2		86.8	90.6	94.4	98.3	38.4
10.4		90.2	94.2	98.2	102	39.9
10.6		93.7	97.8	102	106	41.5
10.8		97.3	102	106	110	43.0
11.0		101	105	110	114	44.6
11.2		105	109	114	119	46.3
11.4		108	113	118	123	48.0
11.6		112	117	122	127	49.7
11.8		116	121	126	132	51.4
12.0		120	125	131	136	53.1
12.2		124	130	135	141	54.9
12.4		128	134	140	145	56.7
12.6		132	138	144	150	58.6
12.8		137	143	149	155	60.5
13.0		141	147	153	159	62.4
13.2		145	152	158	164	64.3
13.4		150	156	163	169	66.3
13.6		154	161	167	174	68.3
13.8		159	166	173	180	70.3
14.0		164	171	178	185	72.3
14.5		175	183	191	198	77.6
15.0		188	196	204	212	83.0

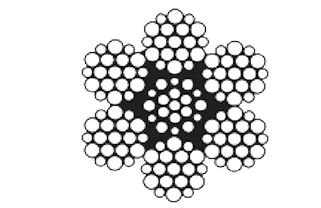

6*19W-WSC
直徑 Diameter	直徑公差 Toleranceon Dia	最小破斷拉力 Minimum Breaking Load (KN)				參考重量 Approx Weight
直徑 Diameter	直徑公差 Toleranceon Dia	I	Ⅱ	Ⅲ	Ⅳ	參考重量 Approx Weight
mm	%D	I	Ⅱ	Ⅲ	Ⅳ	Kg/100m
6.0	+5-2	31.4	32.8	34.2	35.6	14.7
6.2		33.5	35.0	36.5	38.0	15.7
6.4		35.7	37.3	38.9	40.5	16.7
6.6		38.0	39.7	41.4	43.0	17.8
6.8		40.3	42.1	43.9	45.7	18.9
7.0		42.7	44.6	46.5	48.4	20.0
7.2		45.2	47.2	49.2	51.2	21.2
7.4		47.8	49.9	52.0	54.1	22.3
7.6		50.4	52.6	54.8	57.1	23.6
7.8		53.1	55.4	57.8	60.1	24.8
8.0		55.8	58.3	60.8	63.2	26.1
8.2		58.7	61.3	63.8	66.4	27.4
8.4		61.6	64.3	67.0	69.7	28.8
8.6		64.5	67.4	70.2	73.1	30.2
8.8		67.6	70.5	73.5	76.5	31.6
9.0		70.7	73.8	76.9	80.0	33.0
9.2		73.8	77.1	80.4	83.6	34.5
9.4		77.1	80.5	83.9	87.3	36.1
9.6		80.4	84.0	87.5	91.1	37.6
9.8		83.8	87.5	91.2	94.9	39.2
10.0	+4-2	87.2	91.1	95.0	98.8	40.8
10.2		90.8	94.8	98.8	103	42.4
10.4		94.4	98.5	103	107	44.1
10.6		98.0	102	107	111	45.8
10.8		102	106	111	115	47.6
11.0		106	110	115	120	49.4
11.2		109	114	119	124	51.2
11.4		113	118	123	128	53.0
11.6		117	123	128	133	54.9
11.8		121	127	132	138	56.8
12.0		126	131	137	142	58.8
12.2		130	136	141	147	60.7
12.4		134	140	146	152	62.7
12.6		138	145	151	157	64.8
12.8		143	149	156	162	66.8
13.0		147	154	160	167	69.0
13.2		152	159	165	172	71.1
13.4		157	164	171	177	73.3
13.6		161	168	176	183	75.5
13.8		166	173	181	188	77.7
14.0		171	179	186	194	80.0
14.5		183	192	200	208	85.8
15.0		196	205	214	222	91.8
